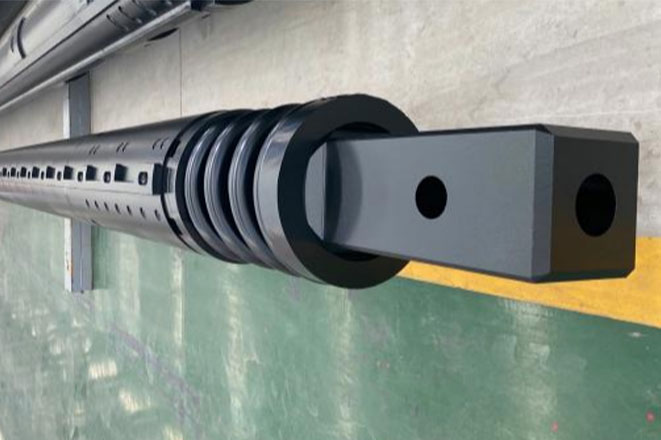

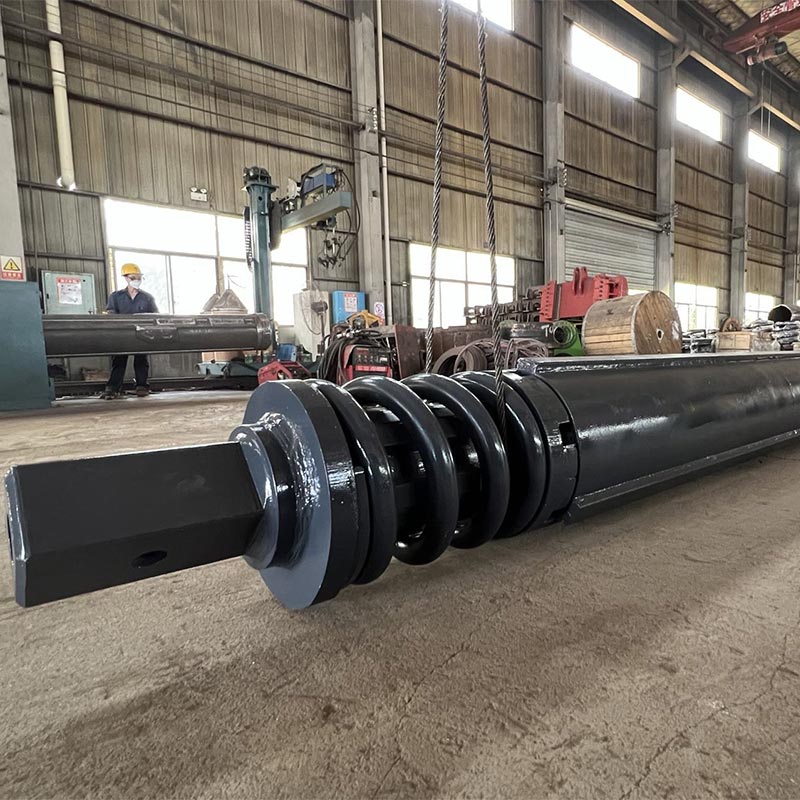

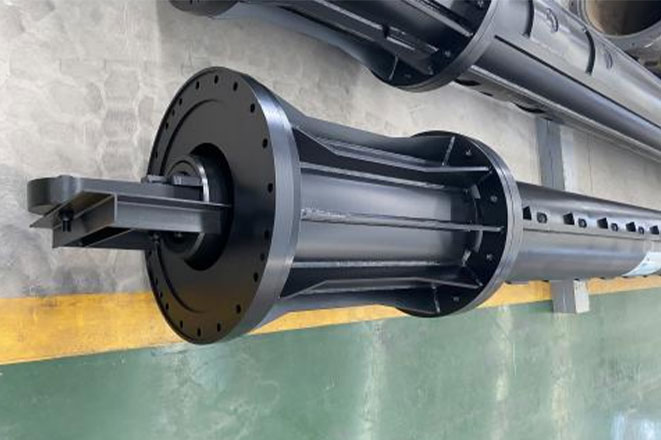

Unicorn Drill Combined kelly bar

Unicorn Drill Combined kelly bar
Size: base on the rigs (Customize)”
Section: 1-6sections (Customize the type of kelly bar according to requirements)
Lead time: 5-10 working days
Warranty: one year or 2000 working hours

For ODM/OEM Services, CONTACT US for details.

Share to

Our Kelly Bars are premium rotary rig tools designed for deep foundation drilling in large-scale construction and infrastructure projects. Compatible with various rotary drilling rigs,Like IMT,MAIT,Bauer and Etc… they provide maximum efficiency and durability in challenging soil and rock conditions.

Parameters

No.Diammeter of the first sectionSectionsKey Pressure TypeLength of per section (m)Drilling Depth(m)Torque(KN.M)
1Φ44034 Interlocking9-1524-55220-260
2Φ470(482)34 Interlocking9-1524-65230-280
3Φ50834 Interlocking9-1524-70260-360
4Φ530(540)345Interlocking9-1524-85360-420
5Φ575(580)345Interlocking9-1524-85420-460
6Φ630345Interlocking9-1524-92460-550



*other sizes can be manufactured as per customer demand( Include shell length/thickness and etc)
*SUITABLE SOILMEC,IMT,MAIT,BAUER AND ALL CHINESE BRAND MACHINES

Features

  • High Torque Transmission: Ensures effective torque transfer for powerful drilling.
  • Multi-Stage Telescopic Design: Adaptable to different drilling depths, with Full locking kelly bar
  • Heavy-Duty Alloy Steel(XT52/Q355B and 35CrMo): Built from high-strength steel for exceptional durability.
  • Protective Wear Coating: Resists wear and extends tool life in abrasive environments.
Play Video about Unicorn Drill Combined Kelly Bar

Advantages

  • Versatility: Works with multiple rig types and adapts to different soil and rock conditions.
  • Efficiency: Quick extension and retraction reduce cycle times, boosting productivity.
  • Durability: Built to withstand high-torque demands with minimal maintenance.
  • Customizable: Dimensions and torque specifications can be tailored to project needs.

Our Services

  1. 24/7 Online Support: Available round-the-clock via email, chat, or phone for questions, technical support, and troubleshooting.
  2. After-Sales Service:
    • Fast technical support for any issues
    • Maintenance tips and guidance
    • Warranty protection for peace of mind
  3. Visual Production Tracking:
    Track your order in real time with our Visual Production service:
    • Receive production updates with photos and videos
    • Stay informed about the status of the order from start to finish

Delivery & Packaging

Feedback

Workshop

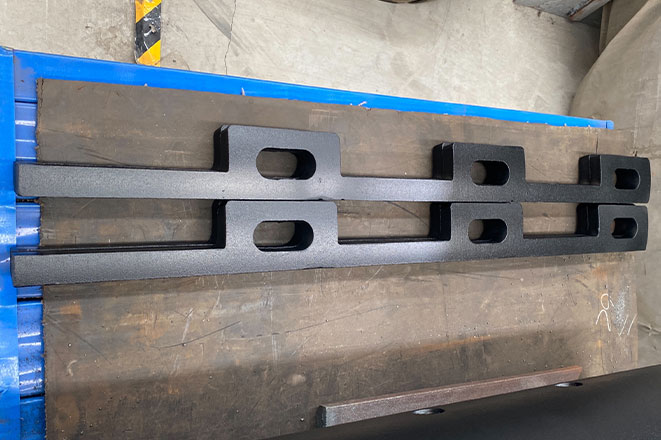

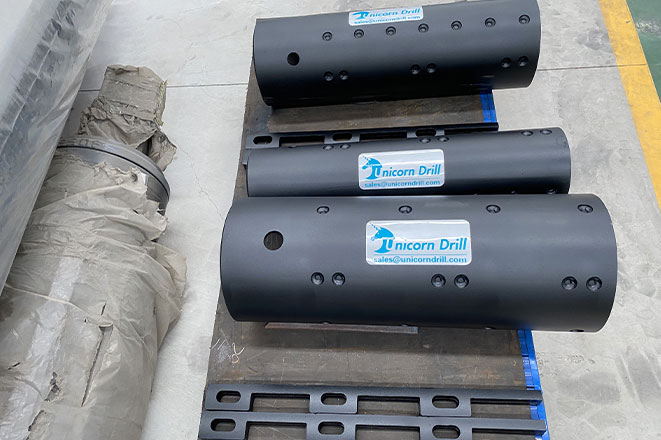

Kelly bar’s Accessories
